SLP74AHCT1G125
SINGLE BUS BUFFER/LIN DRIVER WITH 3-STATE OUTPUT

     The SLP74AHCT1G125 are Si-gate CMOS devices.

     The SLP74AHCT1G125 provide one non-inverting buffer/line driver with 3-state output. A HIGH at OE causes the output to assume a high-impedance OFF-state.


Main feature

  • Balanced propagation delays

  • TTL input levels

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74AHCT1G125KMTR SOT-353-5L SH Halogen free Tape & Reel
SLP74AHCT1G125KBTR SOT-23-5L HG25 Halogen free Tape & Reel

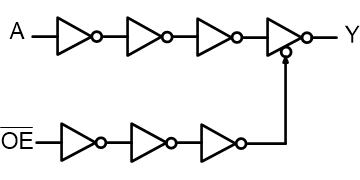

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74AHCT1G125 0 1970-01-01 SLP74AHCT1G125 Brief Datasheet
Packages
