SLP74AUP1T34
LOW-POWER DUAL SUPPLY TRANSLATING BUFFER

    The SLP74AUP1T34 is a single dual supply translating buffer. It is a uni-directional translator from VCCA to VCCY.

    VCCA and VCCY accept supply voltages from 0.9V to 3.6V. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.


Main feature

  • Wide supply voltage range from 0.9V to 3.6V

  • Low static power consumption; ICC=5μA (maximum)

  • Inputs accept voltages up to 3.6V

  • ESD protection:

  • HBM Exceeds 5000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74AUP1T34KMTR SOT-353-5L SW Halogen free Tape & Reel

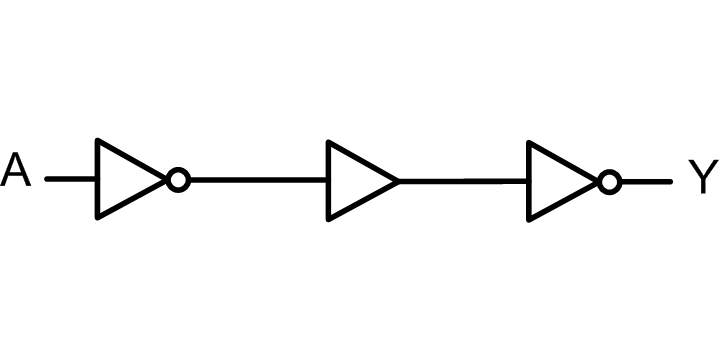

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74AUP1T34 0 1970-01-01 SLP74AUP1T34 Brief Datasheet
Packages
