SLP74AHCT244
OCTAL BUFFER DRIVER WITH 3-STATE OUTPUTS

The SLP74AHCT244 is an octal non-inverting buffer/line driver .This device is designed for 4.5-V to 5.5-V VCC operation.

The 3-state outputs are controlled by the output enable inputs（nOE(——）.When /OE is HIGH, the outputs go to the high impedance OFF-state.


Main feature

  • Inputs can accept voltage higher than Vcc

  • Operates from 4.5V to 5.5V

  • Direct interface with TTL levels

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

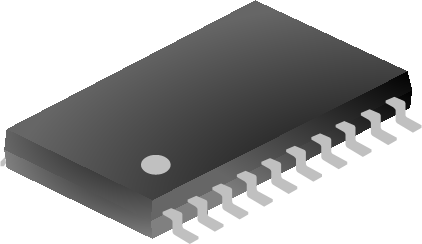

SLP74AHCT244EN SOP-20-375-1.27 74AHCT244 Halogen free Tube
SLP74AHCT244ENTR SOP-20-375-1.27 74AHCT244 Halogen free Tape&Reel

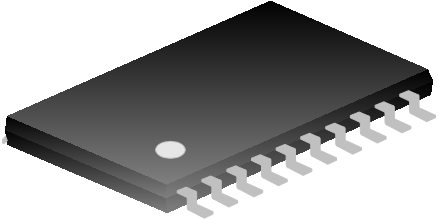

SLP74AHCT244JT TSSOP-20-225-0.65 74AHCT244 Halogen free Tube
SLP74AHCT244JTTR TSSOP-20-225-0.65 74AHCT244 Halogen free Tape & Reel

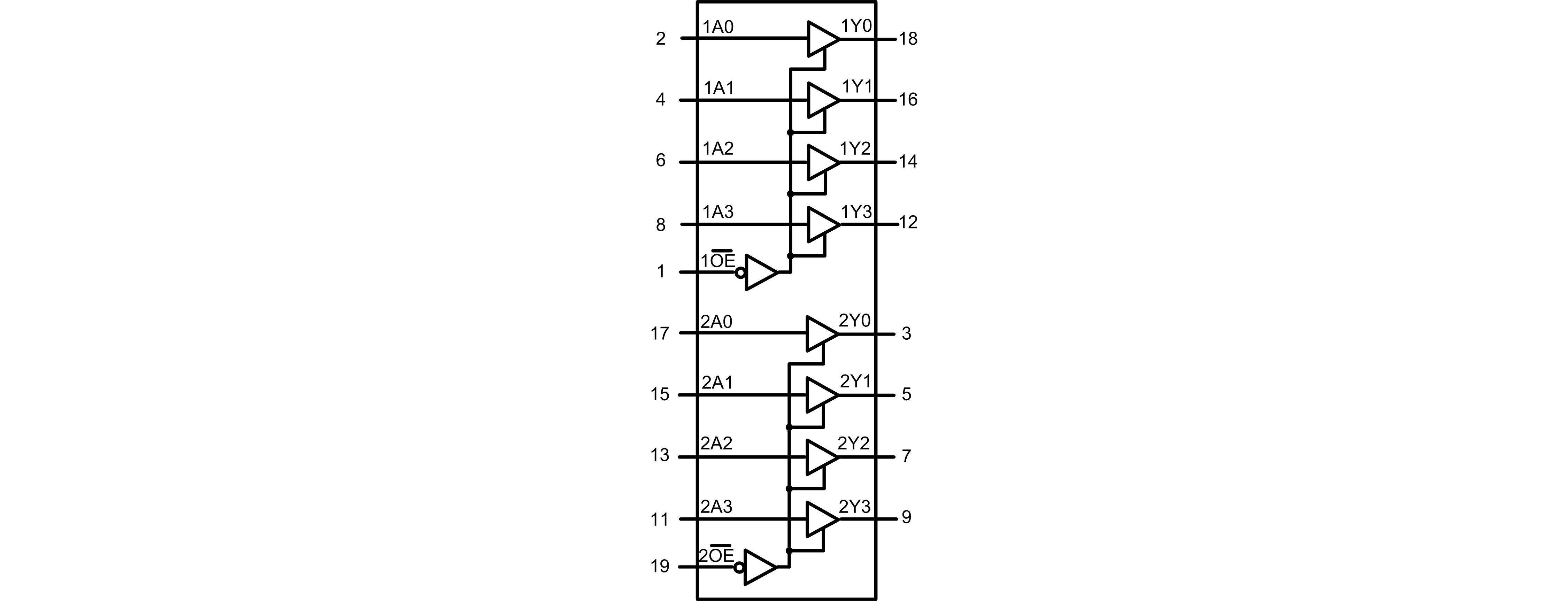

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74AHCT244 0 1970-01-01 SLP74AHCT244 Brief Datasheet
