SLP74AHC14
HEX SCHMITT-TRIGGER INVERTERS

    The SLP74AHC14 is a high-speed Si-gate CMOS device. This device performs the Boolean function Y=A(—).

    The SLP74AHC14 contains six independent inverters. Each circuit functions as an independent inverter. Because of the Schmitt-Trigger action, the inverters are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.


Main feature


  • Balanced propagation delays

  • All inputs have Schmitt-trigger actions

  • Inputs accept voltages higher than VCC

  • CMOS level input

  • ESD protection:

  •  HBM Exceeds 2000V

  •  CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74AHC14EBTR SOP-14-225-1.27 AHC14 Halogen free Tape & Reel
SLP74AHC14EB SOP-14-225-1.27 AHC14 Halogen free Tube
Block Diagram

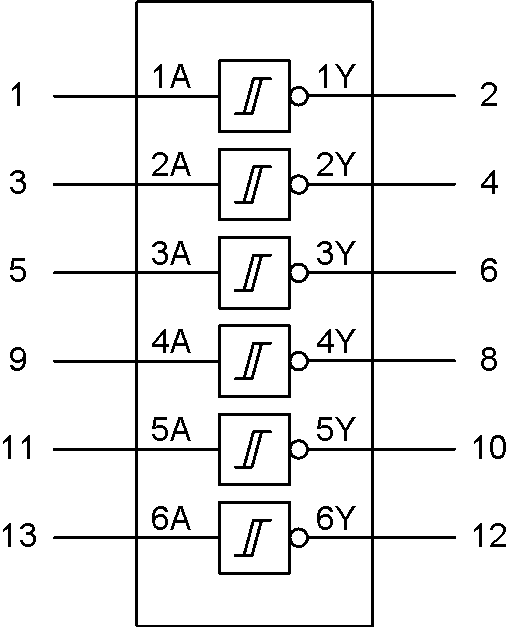

                           Fig.1 Function diagram

                    Fig.2 Logic diagram (one Schmitt trigger)

Documents
title Types of Size (KB) date Download the latest English version
SLP74AHC14 0 1970-01-01 SLP74AHC14 Brief Datasheet
